Edge Camera Module
7 Powerful Interfaces
Inspired by Automation Professionals
24V Power Supply
Trigger Input
Serial Interface
Isolated Outputs
Gigabit Ethernet
SIGNAL OUTPUT
Illumination Control
Camera and External Devices
Compatible with Industrial Photoelectric Sensors
Send or Receive Data
Communicate with PLC using Potential-free Switches
Web-Interface, API, Modbus and more...
Compatible with Industrial Tower Lights
Powers and Controls lights up to 100W
- Power Supply with Passthrough (24V DC)
- Gigabit Ethernet (RTH)
- Trigger Input (TRIGGER)
- Signal Output (SIGNAL)
- Serial Interface (RS-232)
- Illumination Control (FLASH)
- Isolated Outputs (PLC)
Your Match at the Edge
Pick the Image Sensor that fits your needs
Specifications
Image Sensors
C7 features Sony’s industry-leading Pregius S™ industrial image sensors with Global Shutter technology. Pregius S adopts a back-illuminated structure to simultaneously realize a smaller image sensor and a faster frame rate, while still maintaining the high imaging performance of Pregius.
C7-G5
Global Shutter
Mono / Bayer
2472 × 2064 (5.1 MP)
6.77 mm × 5.66 mm (Type 1/1.8″)
2.74µm
C7-G12
Global Shutter
Mono / Bayer
4096 × 3000 (12.3 MP)
11.22 mm × 8.22 mm (Type 1.1″)
2.74µm
C7-G24
Global Shutter
Mono / Bayer
5328 × 3672 (24.6 MP)
14.58 mm × 12,60 mm (Type 1.2″)
2.74µm
Edge Compute

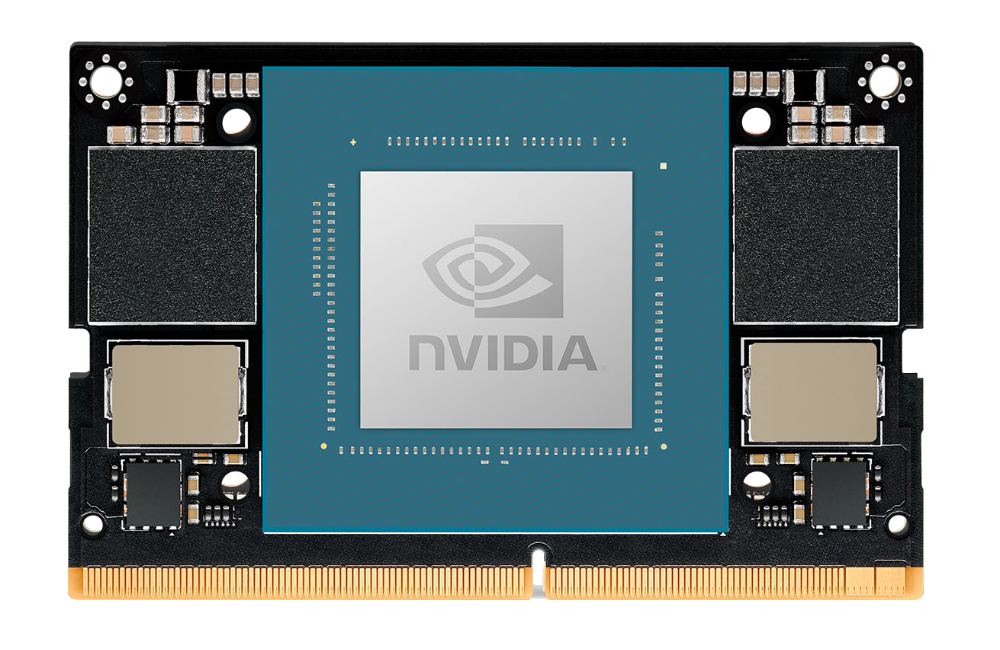

C7 is equipped with NVIDIA® Jetson™ – world’s leading compute platform for embedded AI. Our base model -N4 comes with Jetson Nano 4GB. If you need even more performance, select -NX16 to get the highest-end Jetson Xavier NX 16GB.
-N4
CPU
4-core ARM® Cortex®-A57, Max. Frequency: 1.43 GHz
GPU
128-core NVIDIA® Maxwell™, Max. Frequency: 921 MHz
Memory
4 GB 64-bit LPDDR4 Unified Memory, Max. Bus Frequency: 1600 MHz
-NX16
CPU
6-core NVIDIA Carmel ARM® v8.2 64-bit, Max. Frequency: 1.9 GHz
GPU
384-core NVIDIA® Volta™, Max. Frequency: 1100 MHz
Memory
16 GB 128-bit LPDDR4x Unified Memory, Max. Bus Frequency: 1866 MHz
Interfaces
Get ready to maximize capabilities in industrial vision solutions. Inspired by experts in logistics and production automation versatile interfaces are integrated in the device to create high functional turnkey-solutions and reducing system complexity at the same time.
Power Supply
24 V DC (± 10%) / 2 x 3 A / M8 (4-pole)
Single power input that supplies both the camera and external devices (power pass-through).
Trigger Input
24 V DC / M8 (4-pole)
Input and power supply for trigger devices. Can be connected to mechanical switches or commercial photoelectric sensors (pin-compatible).
RS-232 Interface
24 V DC / TxD out + TxD In / M8 (8-pole)
Power supply and control of industrial devices, such as industrial code readers.
PLC
3× potential-free switching contacts max. 30 V / 1.5 A / M 8 (6-pole)
potential-free contact for communication with PLC
Networking
10/100/1000 BASE-T Gigabit Ethernet, M12 (8-pole)
Your primary interface to setup, use and maintain C7. Access the web interface and API or use Modbus/TCP to communicate with industrial automation devices.
Signal Output
4× 24 V DC, M12 (5-pole)
Four digital outputs can be used to control industrial signal tower lights.
Flash Output
24 V DC / M12 (5-pole)
Power and control of external illumination (flash or continuous) with up to 100W.
Mechanical
Dimensions
107.8 mm × 95.0 mm × 67.0 mm
Mounting
4× M4×0.7
Weight
630 g (without lens)
Lens Mount
C Mount
